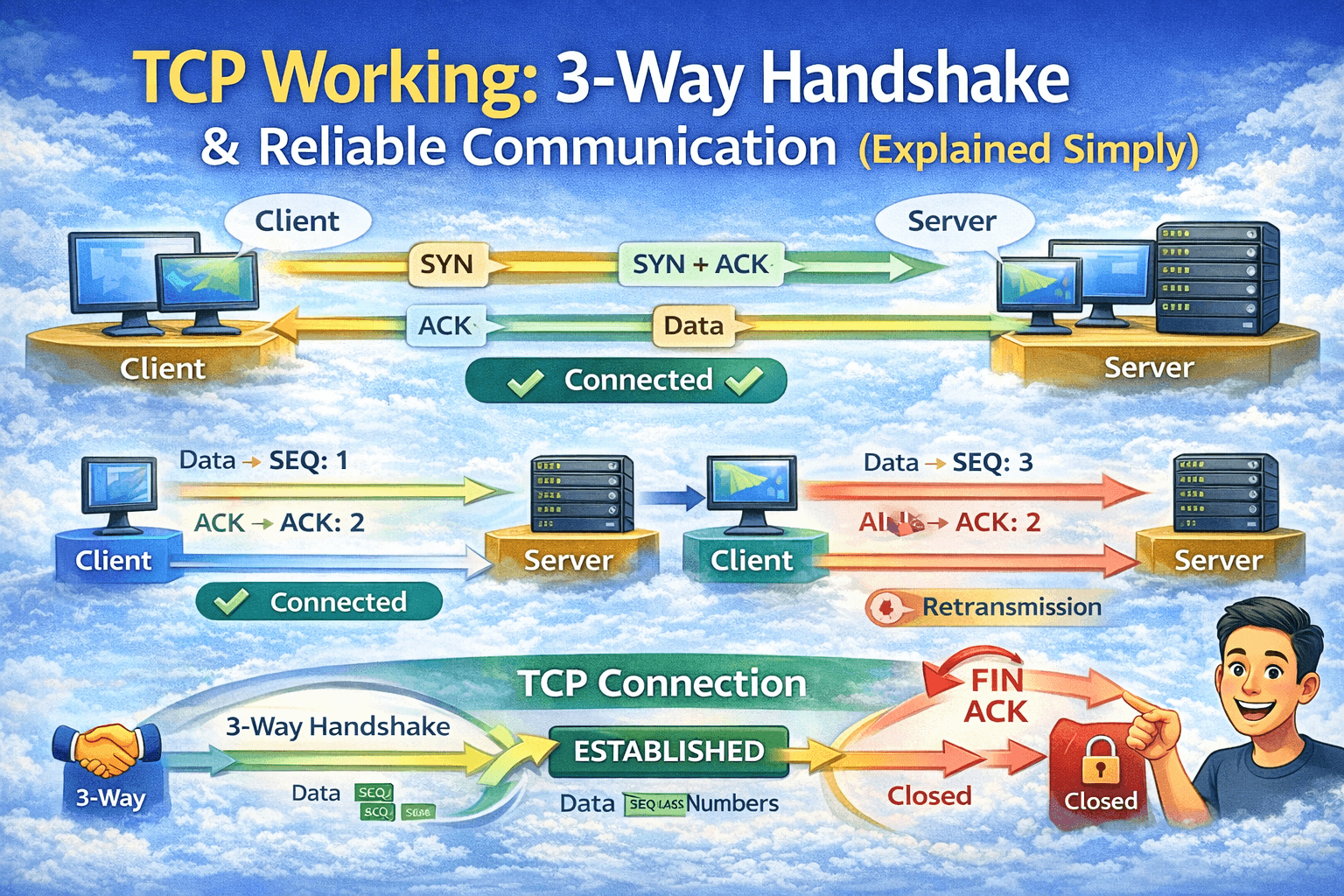

TCP Working: 3-Way Handshake & Reliable Communication
Imagine you walk into a shop, but before the shopkeeper starts serving you, you first greet each other and agree you’re ready to talk. Networking works in a similar way.
When two computers want to talk reliably over a network, they use a protocol called TCP (Transmission Control Protocol) to make sure both sides are ready and that messages won’t get lost, arrive out of order, or get corrupted along the way. (TechTarget)
What Is TCP and Why It Is Needed
At a high level, TCP is a protocol that helps two computers communicate reliably. It’s used for things like:
- Browsing websites
- Downloading files
- Sending emails
- Communicating between applications
TCP ensures that the data you send:
- Arrives at the other end
- Arrives in the correct order
- Is complete
Without TCP, data might get lost, duplicated, or arrive scrambled — like talking in a noisy room without confirming you were heard. (TechTarget)
Problems TCP Is Designed to Solve
Unreliable networks can cause:
- Lost packets
- Out-of-order packets
- Corrupted data
- Duplicate packets
TCP solves these by:
- Using sequence numbers so data can be reordered correctly
- Waiting for ACKs (acknowledgements) before moving on
- Retransmitting packets if they’re missing
- Using checksums to detect corruption (GeeksforGeeks)
This means the application (like your web browser) can ask for data and trust what it gets.
What Is the TCP 3-Way Handshake?
Before two computers transfer data, they must agree to communicate — just like you and a friend confirm you’re both ready before starting a conversation.
This setup is called the 3-way handshake because three messages are exchanged:
- SYN
- SYN-ACK
- ACK (MDN Web Docs)
Step-by-Step: SYN, SYN-ACK, and ACK
Step 1 — Client Sends SYN
The client (your computer) begins by sending a SYN packet to the server.
- SYN stands for “synchronize”
It tells the server:
“I want to start a connection, and here’s my initial sequence number.” (Network Walks)
Think of this as the client saying “Hello! Are you there?”
Step 2 — Server Replies with SYN-ACK
The server receives the SYN and replies with a SYN-ACK:
- SYN to synchronize with the client
- ACK to acknowledge the client’s request
This tells the client:
“Yes, I’m here, and I’m ready. Here’s my sequence number too.” (System Design Codex)
It’s like the server saying “Hi, I heard you. Let’s talk!”
Step 3 — Client Sends ACK
Finally, the client sends an ACK back to the server.
This confirms:
- It received the server’s reply
- Both sides are ready to start data transfer (Network Walks)
Once this last ACK is sent, the connection is established and both ends move to the ESTABLISHED state.
How Data Transfer Works in TCP
Now that the connection is established, TCP ensures reliable, ordered data transfer using:
Sequence Numbers
Every byte of data is assigned a number. This helps both sides:
- Reassemble data in order
- Detect missing or duplicate packets (ScienceDirect)
Acknowledgements (ACKs)
After receiving data, the receiver sends ACKs to confirm which bytes arrived correctly. If the sender does not get an expected ACK in time, it retransmits the missing data. (ScienceDirect)
This turns an unreliable network into a reliable stream of bytes.
How TCP Ensures Reliability, Order, and Correctness
TCP incorporates multiple mechanisms to provide reliable communication:
- Sequencing: Keeps packets in order
- Checksums: Detects corrupted data
- Retransmissions: Resends lost data
- Flow control: Prevents overwhelming the receiver (GeeksforGeeks)
This is why TCP is used by systems that cannot tolerate missing or misordered data — like web pages, APIs, databases, and email.
How TCP Connection Is Closed (FIN and ACK Explained)
Ending a TCP connection is just as important as starting it.
TCP uses special control flags:
FIN (Finish)
FIN means:
“I have finished sending data and want to close my side of the connection.”
It does NOT immediately close everything.
It only signals that one side is done sending.
ACK (Acknowledgment)
ACK means:
“I received your message.”
It is used throughout TCP communication — including during shutdown.
FIN + ACK Together
Sometimes a device sends FIN and ACK together.
This means:
- Acknowledging the last received data
- Simultaneously requesting to close its side
This happens when a device finishes sending data and has nothing more to transmit.
TCP Connection Termination: Four-Way Handshake
Closing a TCP connection happens in four steps.
This allows both sides to finish sending remaining data safely.
Step 1 — FIN (Client → Server)
Client sends FIN:
“I am done sending data.”
Step 2 — ACK (Server → Client)
Server replies with ACK:
“I received your FIN.”
Now the connection becomes half-closed.
The server can still send remaining data.
Step 3 — FIN (Server → Client)
When the server finishes sending its data, it sends its own FIN:
“Now I am also done.”
Step 4 — ACK (Client → Server)
Client acknowledges the server’s FIN with ACK.
Now both sides agree:
Communication is finished.
The connection is fully closed.
Important Real-World Behavior
Often:
- One side sends FIN
- The other side ACKs immediately
- But delays sending its own FIN until its data transfer completes
This allows graceful shutdown without cutting off data.
Why TCP Shutdown Is Designed This Way
TCP does not assume both sides finish at the same time.
One side may finish earlier.
The four-step process ensures:
- No data loss
- Clean resource release
- Proper session termination
This design makes TCP stable even in long-running connections.
Final Thoughts
TCP is much more than just “sending data”.
It is a complete communication system that:
- Builds connections
- Guarantees reliability
- Maintains order
- Handles packet loss
- Closes connections safely
Every website you load, every API you call, and every file you download depends on this invisible handshake process working perfectly.
Understanding TCP makes you a stronger backend engineer, system designer, and network-aware developer.
